Artículo No :

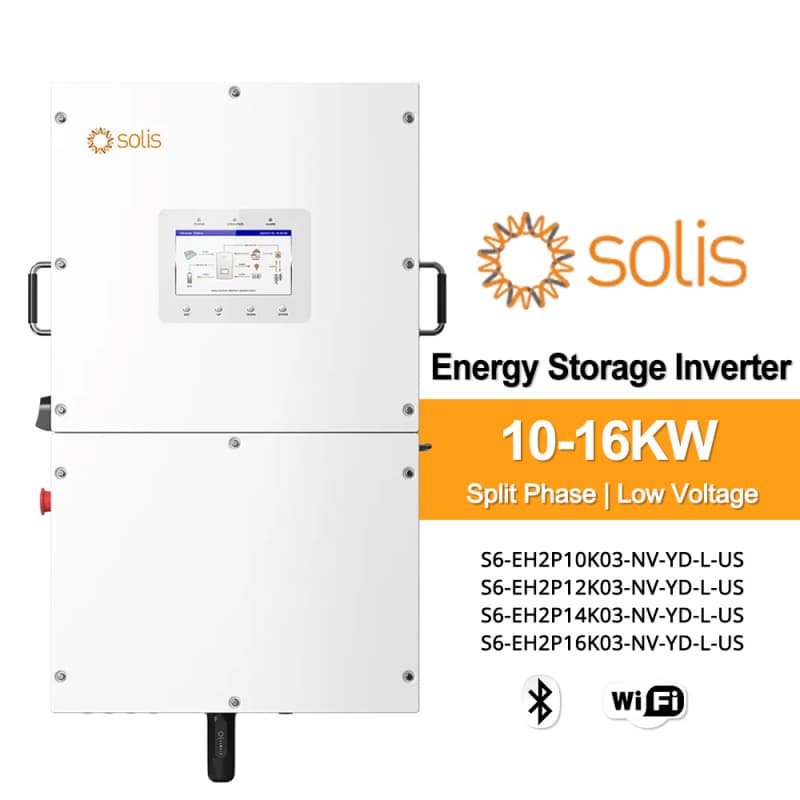

Split phase 120/240V solar hybrid inverterOrden (MOQ) :
NegotiablePago :
T/T, etcOrigen del producto :
ChinaColor :
WhitePuerto de embarque :
Shanghai, Ningbo, ShenzhenTiempo de espera :
5-15 DaysPeso :
64.3KGProduct Introduction
Inverter Parameters
| Model | 12K | 14K | 16K |
|
Max. input voltage
|
550 V
|
||
|
Rated voltage
|
380 V
|
||
|
Start-up voltage
|
100 V
|
||
|
MPPT voltage range
|
100-450 V
|
||
|
Max. input current per MPPT
|
40 A
|
||
|
Max. short circuit current per MPPT
|
50 A
|
||
|
Number of MPPTs / Number of strings per MPPT
|
3 / 2
|
||
|
Battery type
|
Li-ion / Lead-acid
|
||
|
Battery voltage range
|
40 - 60 V
|
||
|
Max. charge / discharge current
|
250 A
|
290 A
|
|
|
Communication
|
CAN / RS485
|
||
|
Rated output power
|
12 kW
|
14 kW
|
16 kW
|
|
Rated output voltage
|
240 V
|
||
|
Input voltage range
|
211 - 264 V
|
||
|
Max. input current
|
180 A
|
||
|
Phase power
|
L1/L2/N(PE), 120 V / 240 V (split phase)
|
||
|
Rated output voltage (L1-L2)
|
240 V
|
||
|
AC output voltage range
|
211 - 264 V
|
||
|
Rated frequency
|
60 Hz
|
||
|
Max. output over current protection, 10 sec
|
145 A
|
||
|
Dimensions (W × H × D)
|
19.7 × 37.6 × 11.7 in (500 × 955 × 297 mm)
|
||
|
Weight
|
141.76 lbs (64.3 kg)
|
||
|
Grid Certififications
|
UL 1741, UL 1741 SB, UL 1741 PCS, IEEE 1547-2018,
IEEE1547.1-2020, CSA C22.2107.1-1, CA Rule 21(1), HECO Rule 14H(1), Luma(1)
|
||
|
Safety Certififications
|
UL 1741 PVRSS, UL 1699B, UL 1998 (US), UL 3741
|
||
Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
Salida 100% desequilibrada, cada fase Pareja de CA para modernizar el sistema solar existente Máx. 10 piezas en paralelo para conexión a red y fuera de ella Operación; Admite múltiples baterías en paralelo Admite almacenamiento de energía del generador diésel
