Artículo No :

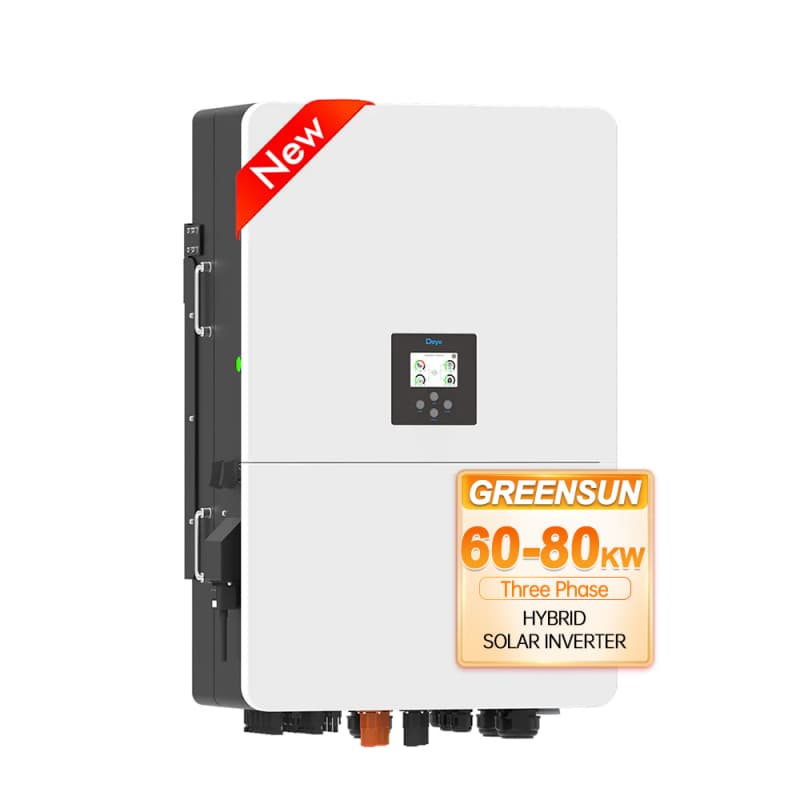

Solar Hybrid Inverter 60-80KWOrden (MOQ) :
NegotiablePago :
T/T, etcOrigen del producto :
ChinaColor :
WhitePuerto de embarque :
Shanghai, Ningbo, ShenzhenTiempo de espera :
5-15 DaysPeso :

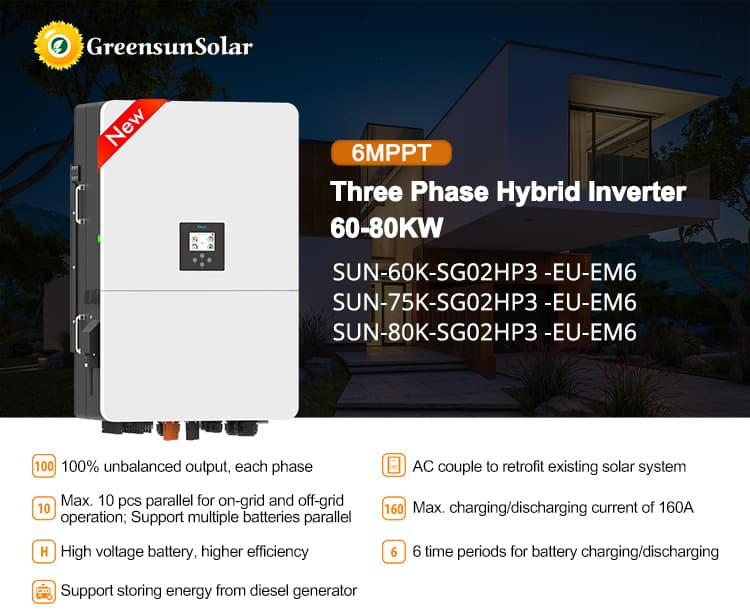

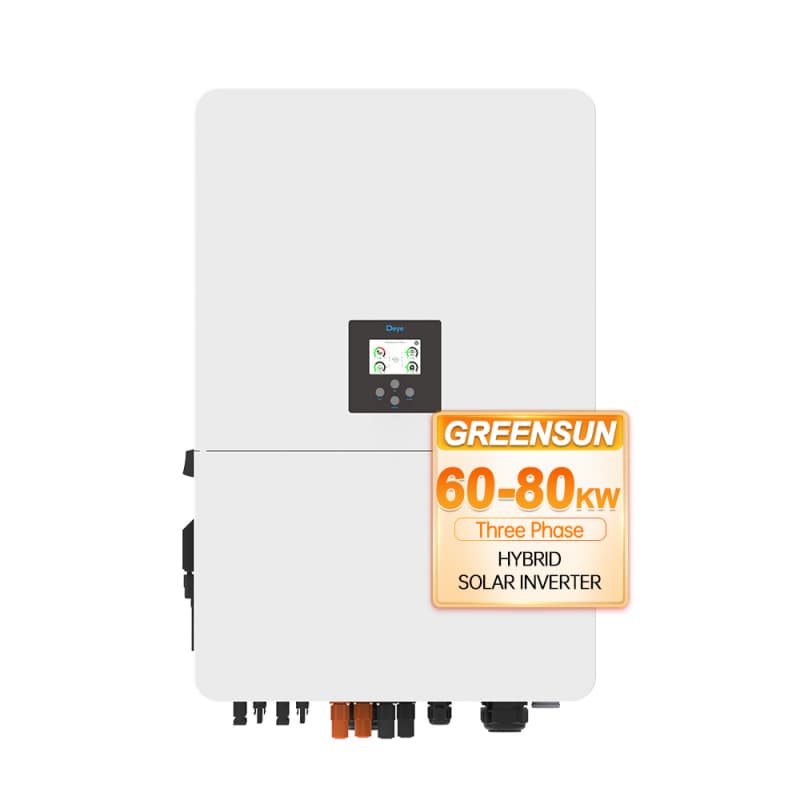

97.5KGProduct Introduction
Inverter Parameters
|
MODEL
|
SUN-60K-SG02HP3 -EU-EM6
|
SUN-75K-SG02HP3 -EU-EM6
|
SUN-80K-SG02HP3 -EU-EM6
|
|
Battery Type
|
Lithium-ion
|
||
|
Battery Voltage Range (V)
|
160-1000
|
||
|
Max. Charging Current (A)
|
80+80
|
||
|
Max. Discharging Current (A)
|
80+80
|
||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
||
|
Number of Battery Input
|
2
|
||
|
Max. PV Access Power (W)
|
120000
|
150000
|
160000
|
|
Max. PV Input Power (W)
|
96000
|
120000
|
128000
|
|
Max. PV Input Voltage (V)
|
1000
|
||
|
Start-up Voltage (V)
|
180
|
||
|
MPPT Voltage Range (V)
|
150-850
|
||
|
Rated PV Input Voltage (V)
|
650
|
||
|
Max. Operating PV Input Current (A)
|
36+36+36+36+36+36
|
||
|
Max. Input Short-Circuit Current (A)
|
54+54+54+54+54+54
|
||
|
No. of MPP Trackers/
No. of Strings MPP Tracker
|
6/2+2+2+2+2+2
|
||
|
Rated AC Input/Output Active Power (W)
|
60000
|
75000
|
80000
|
|
Max. AC Input/Output Apparent Power (VA)
|
66000
|
82500
|
88000
|
|
Rated AC Input/Output Current (A)
|
91/87
|
113.7/108.7
|
121.3/115.9
|
|
Max. AC Input/Output Current (A)
|
100/95.7
|
125/119.6
|
133.4/127.6
|
|
Max. Continuous AC Passthrough (grid to load) (A
|
200
|
||
|
Peak Power (off-grid) (W)
|
1.5 times of rated power, 10s
|
||
|
Rated Input/Output Voltage/Range (V)
|
220/380V, 230/400V 0.85Un-1.1Un
|
||
|
Grid Connection Form
|
3L+N+PE
|
||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
||
|
Operating Temperature Range (℃)
|
-40 to +60℃, >45℃ Derating
|
||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
||
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||

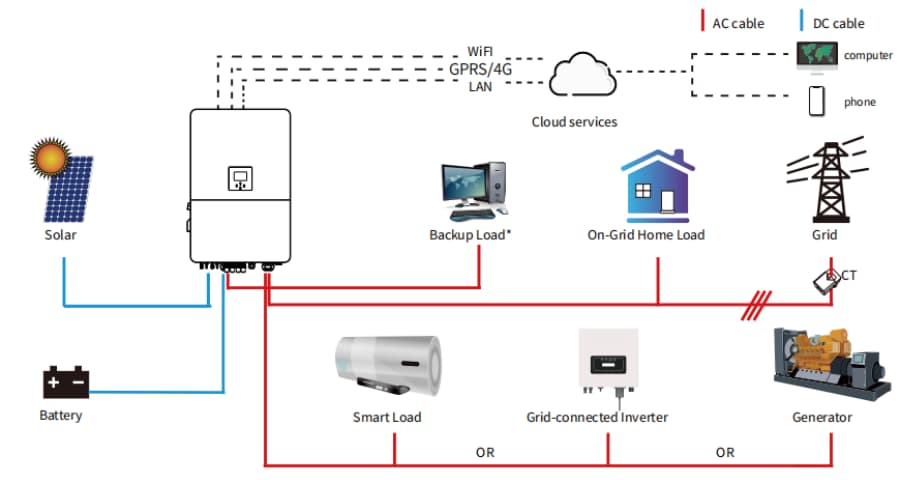

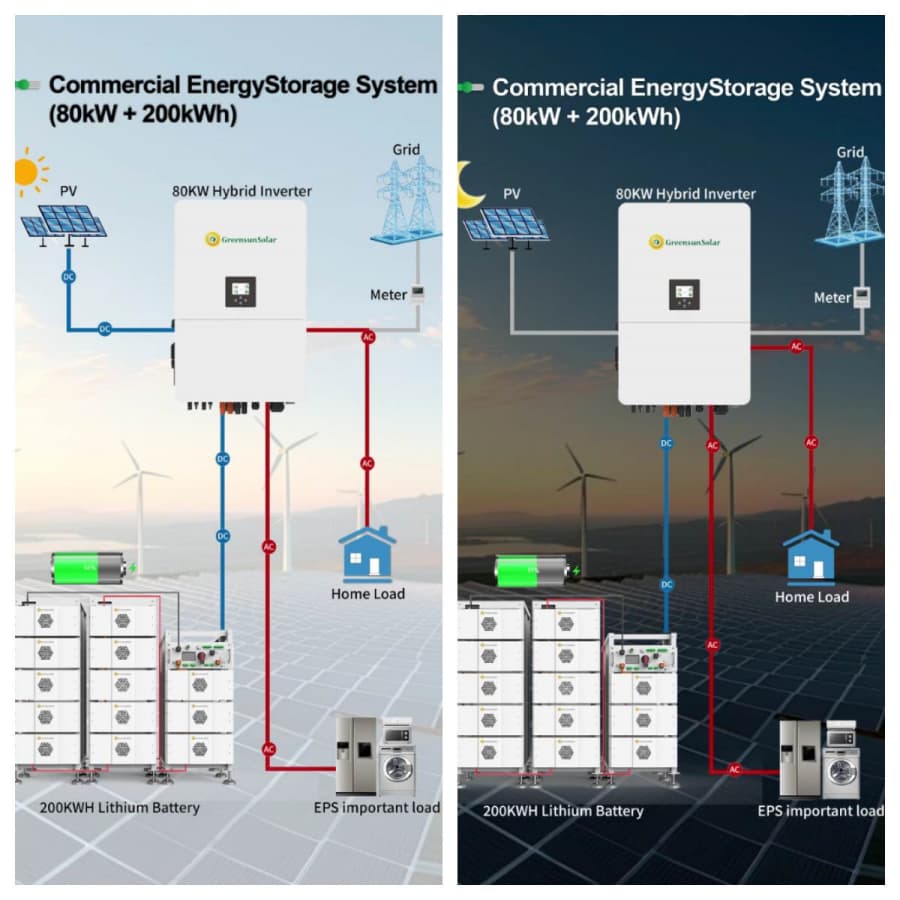

Energy storage system operation（Day&Night）

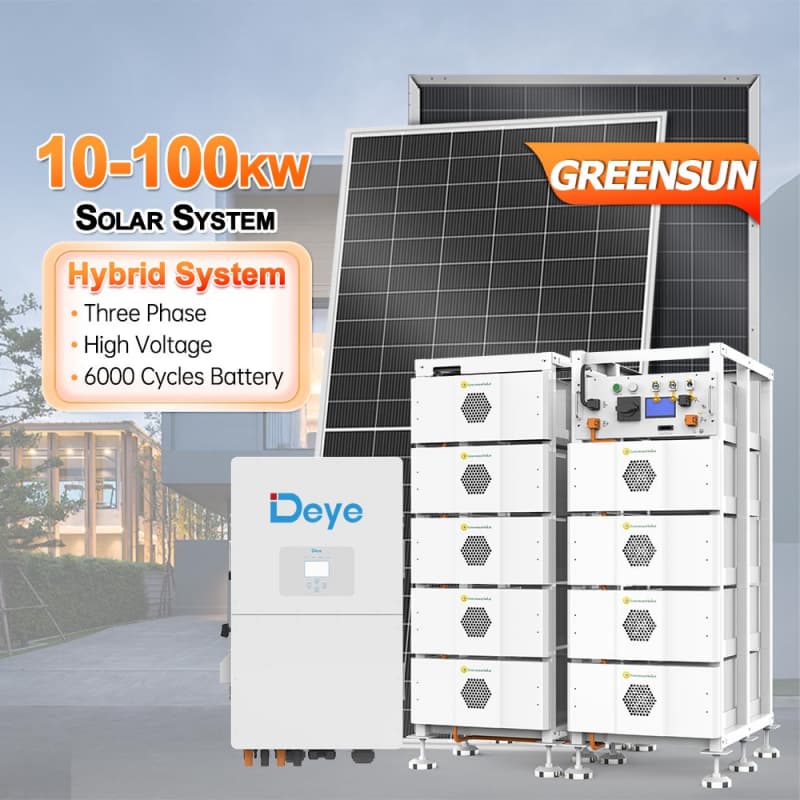

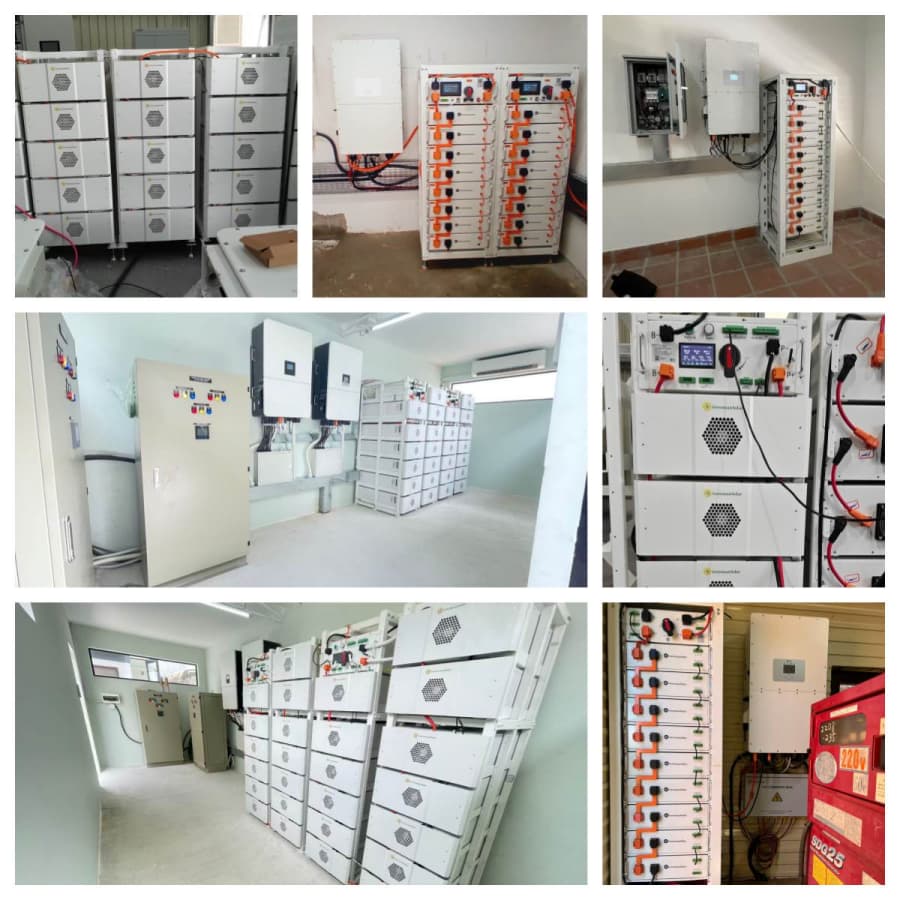

Products&Case
Exhibition
Why Choose Greensun
1.We are a real factory and have strict requirements on the quality of products.
2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.
3.As a factory, we have better control over product costs.
4.Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
If you have any Solar needs,
You can write to us below⬇️⬇️⬇️，and contact us directly.
We will tailor a specific energy storage product to meet your specific needs.
combine the best of grid-tied and off-grid designs allows users to use solar-generated power first, store excess in batteries for later use (e.g., peak demand hours or outages), and feed surplus to the grid for credits
100% unbalanced output, each phase AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Flexible charge and discharge settings allows for greater utilization of the energy storage system Eligible for enrollment in most VPP programs which yields additional benefifits for the system owner Split Phase Low Voltage Energy Storage Inverters
